Features

  • Sine Wave output VCXO
  • Output 10k Ohm //10pF load, 1.0V p-p
  • Harmonics < 25dBc
  • Low current consumption

Typical Applications

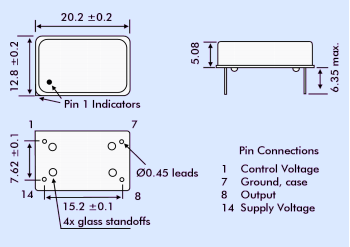

Specifications

Frequency Range: 10.0MHz to 30.0MHz
Input Voltage: +2.8V, +3.3V±5% or +5.0VDC ±5%
Control Voltage Centre: +2.5 VDC
Initial Frequency Accuracy: ±15ppm with Conrol V at +2.5VDC
Control Voltage Range: +0.5V to +4.5VDC
Frequency Deviation Range: ±50ppm typical*
Output Wave Form: True Sine Wave
Output Level: 10kW//10pF load, 1.0V p-p
Harmonics: <-25dBc
Phase Noise: -130dBc/Hz at 1kHz offset
Current Consumption Supply = 2.8V: 1.0mA Supply = 3.3V: 1.1mA Supply = 5.0V: 1.2mA
Start-up Time: 2.0ms typical
Storage Temperature: -50° to +125°C
Sub-Harmonics: None
Ageing: ±5ppm per year maximum
Enable/Disable: Not implemented - 4 pad package
RoHS Status: Fully compliant
