A miniature cylindrical 'watch' crystal, dimensions 2mm x 6mm with leads formed for surface-mount application. Euroquartz stock numbers: PH32768A, PH32768B, PH32768C

A HC49 crystal with formed leads and clip for SMD application. Available in fundamental and 3rd, 5th 7th and 9th overtones. Close tolerances and specifications available.

An industry-standard SMD crystal with the same base outline as HC49. Can height: 3.0mm or 4.2mm. A low-cost part, ideal for volume applications.

SMD helical filter, are custom wound and screened. The helical band pass filter coils are available from 45MHz to 2600MHz, triple pole, 50 Ohms or 75 Ohms matching impedance.

Industry-standard SMD watch crystal, 8.7 x 3.8 x 2.5mm. Stock number PH32768X.

SMD crystal, AT-Cut in 92SMX package. Operation over -40° to +125°C

Low-cost source of 32.768kHz and from 30kHz to 100kHz frequencies. IR-Reflow capable.

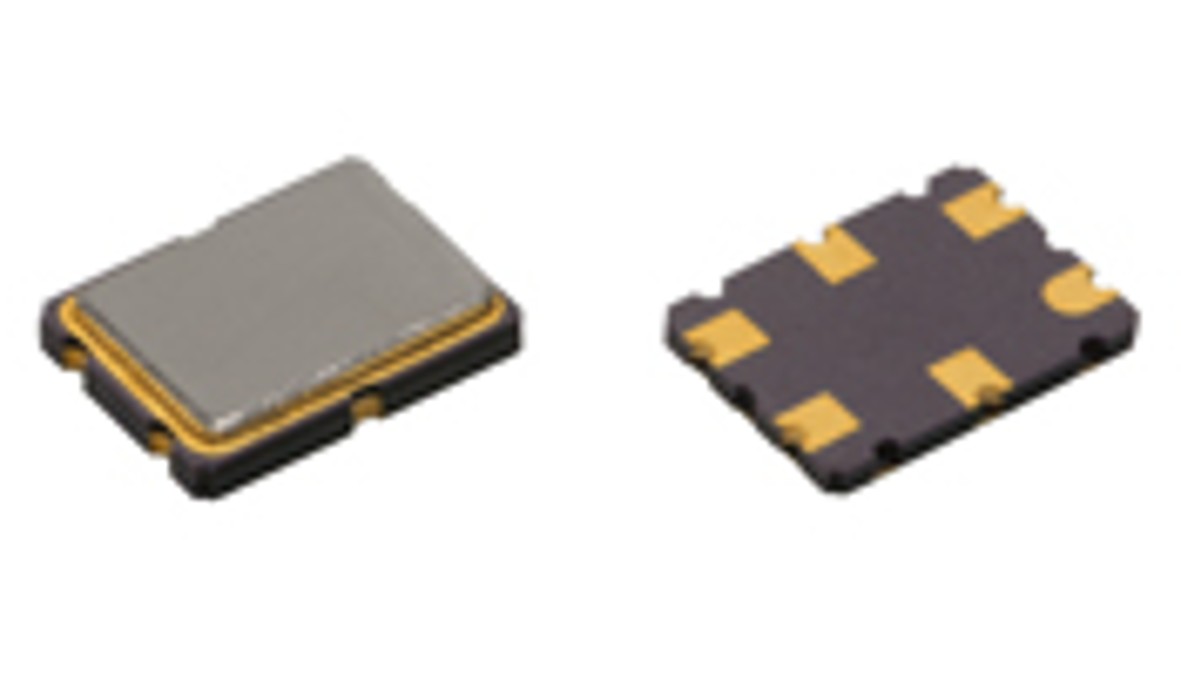

96SMF and 98SMF, SMD 6 x 3.5mm, ultra-low profile, Monolithic Crystal Filter

Base insulators Y45UINSA, Y18UINSA and Y33UINSA and Crystal Clip Y18UCLPA

A miniature SMD watch crystal, popular in mass-market applications. Euroquartz stock number = PH32768P

Custom crystal filters, overview of Euroquartz design and oproduction capability: Band Pass Crystal Filters, Linear Phase Filters, Comb Filter Banks, Band Reject Filters stc.

Manufactured by Statek, CX11LHG crystals are designed to survive extreme shock and vibration; mechanical shock survivability

32.000kHz to 240.000kHz CX11SM crystals have a very small outline and low-profile and are suited for all low frequency applications. Manufactured by Statek Inc

CX11SMAT crystals have a very small outline and low-profile and are suited for all applications requiring low mass and high frequency. Manufactured by Statek Inc

CX18SM ultra-miniature crystals are designed for applications where miniaturization is paramount. The rugged crystal is ideally suited for a wide variety of high frequency applications. manufactured by Statek Inc

CX1HGSM AT crystals are rugged leadless devices designed for applications requiring exceptional shock and vibration survival characteristics. Manufactured by Statek Inc

The 'HT' range of crystals are designed for high operating temperatures. The CX1VHT/CX1HHT, CX4VHT and CX9VHT crystals operate up to 200°C and feature an expected life in excess of 1000 hours at these temperatures. manufactured by Statek Inc.

CX1SM crystals consist of a high quality tuning fork resonator in a rugged, hermetically sealed ceramic package. CX1SM is intended for use in Series (two cascaded inverters) oscillator circuits. Manufactured by Statek Inc

The 'HT' range of crystals are designed for high operating temperatures. The CX1HT, CX4HT and CX9HT crystals operate up to 200°C and feature an expected life in excess of 1000 hours at these temperatures. manufactured by Statek Inc

CX1VSM crystals consist of a high quality tuning fork resonator in a rugged, hermetically sealed ceramic package. CX1VSM is intended for use in Pierce (single inverter or 'parallel') oscillator circuits. Manufactured by Statek Inc

CX4 crystals are leadless devices designed for surface mounting on PCBs or hybrid substrates. The crystal has been designed for low power applications. and is available in two vibrational modes: Fundamental: 600kHz to 2.5MHz Overtone: 1.8432MHz to 2.5MHz. Manufactured by Statek Inc

CX4VSM crystals are leadless devices designed for surface mounting on PCBs or hybrid substrates. The crystals are intended for use in Pierce (single inverter) oscillator circuits. Manufactured by Statek Inc

CX9HT crystals are designed for applications requiring very small footprint and low profile. Manufactured by Statek Inc.

CX9VSM crystals are leadless devices designed with a very low-profile. Manufactured by Statek Inc

CXOL oscillators are ultra-miniature (3.2 x 1.5mm) SMD packaged with ultra-low current consumption. The part is hermetically sealed in a highly-reliable housing. Available over a wide range of supply voltage. This is a Statek product manufactured by Statek Inc, America. Contact Euroquartz Sales or Technical for details.

CXOMK oscillators are high reliability SMD clock oscillators suitable for use in rugged environments. Full MIL testing is available. A high shock version of the part, CXOMKHG, is available. Manufactured by Statek Inc

CXOQ are ultra-miniature (2.0 x 2.5mm) oscillators. The oscillators are capable of withstanding high shock environments (HG version). The design and build standard including availability of full 'MIL' testing. This is a Statek product manufactured by Statek Inc, America. Contact Euroquartz Sales or Technical for details.

CXOXHT oscillators are ultra-miniature SMD, high specification units designed for extended use in high temperature environments. This is a Statek product manufactured by Statek Inc, America. Contact Euroquartz Sales or Technical for details.

32.768kHz, ultra-miniature, low current, tight tolerance SMD oscillator. AT-Cut crystal. Fast start-up. High shock resistance. Full MIL testing available. This is a Statek product manufactured by Statek Inc, America. Contact Euroquartz Sales or Technical for details.

Tape and reel specification for all CXSM SMD crystals.

Miniature cylindrical crystal with AT-CUT strip crystal providing low mass with small size.

14 pin DIL through-hole TCXO without trimmer. Stability from ±1ppm -30°~+75°C. CMOS square wave output. Wide frequency range.

An ultra-miniature, 2.0 x 1.6 x 0.8mm SMD, clipped sinewave-output TCXO. Excellent temperature stability, from ±0.5ppm. Output level 0.8V p-p minimum into a 10k Ohms //10pF load. RoHS and REACH Compliant.

An ultra-miniature, 2.5 x 2.0 x 0.8mm SMD, clipped sinewave-output TCXO. Excellent temperature stability, from ±0.5ppm. Output level 0.8V p-p minimum into a 10k Ohms //10pF load. RoHS and REACH Compliant.

A micro-miniature CMOS, 4 pad SMD TCXO. Stability from ±1ppm -30°~+75°C. RoHS and REACH compliant. High spec with low cost. Quick delivery.

Clipped-sinewave output TCXO in a miniature 5.0 x 3.2mm SMD package. Stability from ±0.5ppm 0°~+50°C. Output level 0.8Vp-p min. into a 10k Ohms //10pF load.

A miniature 4 pad SMD TCXO. Stability from ±1ppm -30°~+75°C. HCMOS square wave output. Wide frequency range. RoHS compliant. High spec with low cost. Quick delivery.

A miniature 4 pad SMD TCXO (EM572T) or VCTCXO (VEM572T). Stability from ±0.5ppm. HCMOS square wave output. RoHS compliant. Frequency range 1.25MHz to 40MHz.

HCMOS TCXO at 32.768kHz or from 20kHz to 50kHz. 7.0 x 5.0mm SMD package. Stability from ±1ppm -30°~+75°C.

HCMOS square wave TCXO With ultra-low current consumption, from 2.3mA. The part is packaged in a 7.0 x 5.0mm SMD package. Stability is from ±1ppm -30°~+75°C. Part is RoHS compliant.

Clipped-sinewave output TCXO in the industry-standard 7.0 x 5.0mm SMD package. Stability from ±0.5ppm 0°~+50°C. The clipped sinewave output level 0.8Vp-p min. into a 10k Ohms //10pF load. Frequency Range 10MHz to 50MHz.

A miniature 4 pad SMD TCXO. Stability from ±1ppm -30°~+75°C. HCMOS square wave output. Wide frequency range. RoHS compliant. This part has been revised, for new designs see EM572T.

For new designs see part M572T(kHz). HCMOS TCXO at 32.768kHz or from 20kHz to 50kHz. 7.0 x 5.0mm SMD package. Stability from ±1ppm -30°~+75°C. Part is RoHS compliant.

A low power, (current consumption 0.79µA at 1.8V supply) 32.768kHz TCXO. Frequency stability ±5ppm over -40° to +85°C.

A miniature 4 pad SMD TCXO (EML572T) or VCTCXO (VEML572T). Stability from ±0.5ppm. HCMOS square wave output. RoHS compliant. For a CMOS TCXO from 1.56MHz to 40MHz see part EM572T.

Miniature 4 pad SMD TCXO. Stability from ±1ppm -30°~+75°C. HCMOS square wave output. Frequency range 27.0MHz to 200.0MHz. RoHS Compliant.

LVDS output, 6 pad, SMD TCXO. Stability from ±1ppm -30°~+75°C. 'W' Group characteristics.

PECL output, 6 pad, 7x5mm SMD TCXO. Stability from ±1ppm -30°~+75°C. PECL 'W' Group characteristics.

Miniature 4 pad SMD TCXO. High frequency range, 200MHz to 800MHz. Stability from ±1ppm -30°~+75°C. HCMOS square wave output. RoHS compliant.

Ultra-miniature SMD watch crystal, 3.2 x 1.5 x 0.75mm. PH32768F.

Ultra-miniature SMD watch crystal, 2.05 x 1.2 x 0.6mm. PH32768V.

A miniature SMD 32.768kHz watch crystal in a ruggedized ceramic package.

An ultra-miniature SMD watch crystal, 2.0 x 1.2 x 0.6mm. One of the smallest crystals available for 32.768kHz.

Ultra-miniature TCXO or VCTCXO with either clipped sinewave or CMOS, squarewave output. Well-specified, low phase noise.

A miniature TCXO or VCTCXO with either clipped sinewave or CMOS, squarewave output. Well-specified, low phase noise.

14 pin Dual in Line CMOS oscillator. Stability from ±10ppm. Enable/disable option.

14 pin DIL, HCMOS/TTL oscillator with ceramic substrate, providing a high reliability and well-proven oscillator design, approved to MIL spec. A radiation tolerant version available. May be screened to MIL-O-55310C Class B. NON-RoHS

SMD version of standard 14 pin DIL, metal can oscillator. Tight stability and wide operating temperature range is available

A CMOS output, 8 pin dual-in-line oscillator. Operating temperature range from -40° to +85°C. Stability from ±10ppm. Enable/disable option.

An 8 pin DIL, HCMOS/TTL oscillator with ceramic substrate. A high reliability, mil spec approved part. A radiation-tolerant version is available, as is screening to MIL-O-55310C Class B NON-RoHS

SMD version of standard 8 pin DIL, metal can oscillators. Tight stability and wide operating temperature range is available.

A HCMOS oscillator with ceramic substrate packaged in a 14 pin DIL package with 14 pins. High reliability design, approved to MIL spec. Radiation tolerant version available. Screening to MIL-O-55310C Class B available. NON-ROHS

8 pin DIL programmable CMOS/TTL oscillator. Stability from ±25ppm -40° to +85°C. Low jitter. QUICK TURNROUND - Usually within 48 hours.

An ultra-small SMD ceramic packaged real time clock module with integrated 32.768kHz crystal. I2C Bus. Provides tenth/hundredths of seconds, seconds, minutes, hours and date functions. Programmable CLKOUT frequencies.

Ultra-miniature SMD watch crystal, 5 x 1.9 x 0.9mm. Euroquartz stock number PH32768S

Design considerations when specifying custom filters.

Crystal filter theory and definition of terms used.

Custom made, narrow band crystal filter. Frequency range 150MHz to 175MHz, ±25kHz: 30dB

Custom made crystal filter. Frequency range 140MHz to 175MHz, ±15kHz @ 3dB

A VCXO packaged in the industry-standard 14 pin DIL package with frequency range 625.0kHz to 50.0MHz. Pull range standard ±80ppm min. Integrated phase jitter 1.0ps.

A micro-miniature 6 pad SMD VCXO in a low-profile 3.2 x 2.5mm package. Pull range standard ±80ppm minimum. Integrated phase jitter 1.0ps.

A 4 pad SMD VCXO with pull range standard ±80ppm min. Integrated phase jitter 1.0ps. Frequency range from 625kHz to 50.0MHz

A miniature 4 pad SMD VCXO in a low-profile 5 x 3.2mm package. Pull range standard ±80ppm. Integrated phase jitter 1.0ps.

A miniature 6 pad SMD VCXO in a low-profile 5.0 x 3.2mm package. Pull range standard ±80ppm minimum. Integrated phase jitter 1.0ps.

A 6 pad SMD VCXO in standard 7 x 5mm outline package. Pull range standard ±80ppm minimum. Integrated phase jitter 1.0ps.

An 8 pin DIL VCXO with frequency range 625kHz to 50.0MHz. Pull range ±80ppm min. Integrated phase jitter 1.0ps.

A 'Q' Series VCXO, GDQF are precision LVDS output VCXOs offering low integrated phase jitter and low current consumption. Available on quick delivery. Supply Voltage is 3.3V or 2.5V. Available in 7 x 5mm or 5 x 3.2mm SMD packages.

A MIL compliant, 14 pin DIL oscillator. Frequency range fron 0.1Hz to 60MHz. HCMOS output. May be screened to MIL-O-55310C Class B. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details

A 'Q' Series VCXO, EGPQF are precision LVPECL output VCXOs offering low integrated phase jitter and low current consumption. Available on very short delivery timescales, Supply Voltage is 3.3V or 2.5V. Available in 7 x 5mm or 5 x 3.2mm SMD packages.

A 'Q' Series VCXO, GPQN are precision LVPECL output VCXOs offering low integrated phase jitter and low current consumption. Available on very short delivery timescales, Supply Voltage is 3.3V or 2.5V. Available in 7 x 5mm or 5 x 3.2mm SMD packages.

GPS dielectric patch antennas - specimen specification

Tight stability, low profile SMT package, frequency range: 10MHz - 300MHz, Output CMOS or Sine (ZT601) Package outline 25.4 x 25.4 x 5.08 mm. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

Very high stability, from ±0.04ppm over 0 to +50°C. Frequency range: 10MHz - 60MHz. Output CMOS. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

PECL output VCXO in 14 pin DIL package. 100MHz to 200MHz, low jitter. Pull range <±100ppm. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

OCXO in a miniature package. Frequency Range: 10MHz - 100MHz. Excellent stability, low phase noise. Output Sine wave. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

OCXO in a miniature package. Frequency Range: 10MHz - 100MHz. Excellent stability, low phase noise. Output HCMOS. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

STRATUM 3 Compliant OCXO. Frequency range: 10MHz - 100MHz, low phase noise. Sine wave output, HCMOS, also available. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

STRATUM 3 Compliant OCXO. Frequency range: 10MHz - 100MHz, low phase noise. Square wave, HCMOS output. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

Very low phase noise. Frequency range: 10MHz - 120MHz. Excellent stability. Sinewave output. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

Low phase noise OCXO, frequency Range: 10MHz - 30MHz, excellent stability. Output Sine wave. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

Low phase noise OCXO, frequency Range: 10MHz - 30MHz, excellent stability. Output HCMOS. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

Standard Dual-in-Line package, frequency range: 10MHz - 100MHz, stability from ±2x10e7. Low phase noise vs. vibration. Excellent acceleration sensitivity. HCMOS output, Sine wave output also available. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details

Rugged construction XO with low phase noise. HCMOS output, industry-standard dual-in-line package This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details

7x5mm SMD programmable CMOS/TTL oscillator. Stability from ±25ppm -40° to +85°C. Low jitter. Enable/disable or standby functions. QUICK TURNROUND available usually within 48 hours.

A miniature 5 x 3.2mm SMD programmable oscillator with HCMOS/TTL output. Stability from ±25ppm -40° to +85°C. Low jitter. QUICK TURNROUND - Usually within 48 hours.

A resin encapsulated SMD programmable oscillator with HCMOS/TTL output. Stability from ±25ppm -40° to +85°C. Low jitter. QUICK TURNROUND - Usually within 48 hours.

A  low supply current clock oscillator.

A low current clock oscillator

A 32.768kHz CMOS oscillator using an AT-Cut crystal, thereby ensuring high frequency stability. Low current consumption in A range.

A 32.768kHz CMOS oscillator using an AT-Cut crystal, thereby ensuring high frequency stability. Low current consumption in A range.

A 32.768kHz CMOS oscillator using an AT-Cut crystal, thereby ensuring high frequency stability. Low current consumption in A range.

A high-reliability, full MIL SPEC approved miniature SMD oscillator. Stability from ±50ppm -55°~+125.0°C. Stability from ±50ppm over -55°  to +125°C. May be screened to MIL-O-55310C Class B. Manufactured by Statek Inc USA

A real-time clock oscillator in a 7 x 5mm SMD package. Stability from ±10ppm, operating temperature range from -10° ~ +70°C to -55°~+105°C (±30ppm). Frequency range 316.0kHz to 160MHz.

Miniature package (7 x 5.0mm) 32.768kHz clock oscillator using an AT-Cut crystal for exceptionally close frequency tolerance. Low power consumption.

A sub-miniature (3.2 x 2.5mm) 32.768kHz realtime clock oscillator with low power consumption and low mass.

A miniature 32.768kHz realtime clock oscillator with low power consumption and low mass.

A SMD oscillator in a miniature, 5 x 3.2mm package. Stability from ±10ppm, operating temperature range from -10° ~ +70°C to -55°~+105°C.

Miniature package (5.0 x 3.2mm) 32.768kHz clock oscillator using an AT-Cut crystal for exceptionally close frequency tolerance. Low power consumption.

An ultra-miniature (3.2 x 2.5mm) 32.768kHz clock oscillator with µA power consumption

Micro-miniature package (3.2 x 2.5mm) 32.768kHz clock oscillator using an AT-Cut crystal for exceptionally close frequency tolerance. Low power consumption.

A miniature 3.2 x 2.5mm SMD oscillator. Stability from ±10ppm, operating temperature range from -10° ~ +70°C to -55°~+105°C. Wide supply voltage range

14 pin DIL True Sine Wave output VCXO. Pull range ±80ppm typical. Output 10kW//10pF, 1.0V p-p

Micro-miniature package (2.5 x 2.0mm) 32.768kHz clock oscillator using an AT-Cut crystal for exceptionally close frequency tolerance. Low power consumption.

An ultra-miniature SMD oscillator. Stability from ±10ppm, operating temperature range from -10° ~ +70°C to -40°~+85°C. Wide supply voltage range.

An ultra-miniature SMD oscillator. Stability from ±10ppm, operating temperature range from -10° ~ +70°C to -40°~+85°C. Supply voltage range 1.8V, 2.5V or 3.3V.

A micro-miniature SMD 32.768kHz watch crystal in a ruggedized ceramic package.

Low-profile, micro-miniature SMD crystal. Low ageing and high shock and vibration resistance.

A micro-miniature SMD 32.768kHz watch crystal in a ruggedized ceramic package.

14 pin DIL Sine Wave VCXO. Pull range ±50ppm typical. Output 10kΩ//10pF, 1.0V p-p

An ultra-compact, thin and light weight tuning fork SMD 32.768kHz watch crystal in a ruggedized ceramic package. Tolerance from ±10ppm @25°C

Micro-miniature SMD crystal ideal for space-constrained applications. Very low ageing.

Micro-miniature SMD crystal ideal for space-constrained applications. Very low ageing.

Ultra-miniature SMD crystal ideal for space-constrained applications. Very low ageing.

5 x 3.2mm 4 pad SMD Sine Wave VCXO. Pull range ±50ppm typical. Output 10kΩ//10pF, 1.0V p-p

One of the smallest crystals available. A micro-miniature SMD crystal ideal for space-constrained applications. Very low ageing. Excellent shock and vibration performance.

A popular source of 32.768kHz (real-time clock) frequency. Low mass, small size (3 x 8mm cylinder) and very low cost.

7 x 5mm 6 pad SMD Sine Wave VCXO. Pull range ±50ppm typical. Output 10kΩ//10pF, 1.0V p-p

An ultra-miniature voltage-controlled TCXO, 2.5 x 2.0 x 0.8mm SMD, clipped sinewave-output . Excellent temperature stability, from ±0.5ppm. Output level 0.8V p-p minimum into a 10k Ohms //10pF load. RoHS and REACH Compliant.

A UM-1 crystal with formed leads and clip for SMD application. Very close tolerances available.

Compact size metal can crystal. Able to be specified to very close tolerances. Popular in telecommunications applications.

Crystal temperature sensors. Extremely sensitive to temperature change.

Tape and reel specifications for the most commonly used quartz crystals in the Euroquartz range.

Tape and reel specifications for the most commonly used VCXOs in the Euroquartz range.

Tape and reel specifications for Euroquartz oscillators.

6 pad, ruggedized SMD TCXO. Stability from ±0.3ppm. Rugged, able to withstand shocks <100,000g. Available with HCMOS or sine wave output. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

6 pad ruggedized SMD TCXO. Stability from ±1ppm -30°~+75°C. Able to withstand <100,000g. Outputs CMOS or Clipped Sine Wave. Tight tolerance over temperature is available >0.3ppm. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

6 pad ruggedized SMD TCXO. Stability from ±1ppm -30°~+75°C. Able to withstand <50,000g. Available in a low g-sensitivity version. Output Clipped Sine wave. Tolerance over temperature is available, from 1.0ppm. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

Micro-miniature SMD TCXO, Stability from ±0.5ppm over -40 to +85°C, <50,000g shock and vibration performance. Low G-sensitivity, HCMOS or Clipped Sine Wave output. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

8 pin DIL Sine Wave VCXO. Pull range ±50ppm typical. Output 10kΩ//10pF, 1.0V p-p

Highly rugged, miniature SMD TCXO for severe environments. Tight Stability, from ±0.1ppm over -20° to +70°C. Output HCMOS or option for clipped sinewave. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

A 'Q' Series VCXO, GTQF are precision CMOS output VCXOs offering low integrated phase jitter and low current consumption. Available on very short delivery time. Supply Voltage is 3.3V or 2.5V. Available in 7 x 5mm or 5 x 3.2mm SMD packages.

Low phase noise performance with ultra-low acceleration sensitivity in miniature SMD package. Frequency range: 10 - 50 MHz Output HCMOS or Clipped Sinewave. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

Low phase noise performance with ultra-low acceleration sensitivity. Frequency range: 10 - 50 MHz Output HCMOS. Industry-standard 14 pin dual-in-line package. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

HCMOS TCXO designed with rugged construction for severe environments. Vibration compensated. SMD package, Temperature stability, from ±2ppm over -40° to +85°C. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

A 'Q' Series VCXO, GTQN are precision HCMOS output VCXOs offering low integrated phase jitter and low current consumption. Available on short delivery timescales. Supply Voltage is 3.3V or 2.5V. Available in 7 x 5mm or 5 x 3.2mm SMD packages.

TCXO designed with rugged construction for severe environments. SMD package, ultra-low frequency: 650Hz - 1.25MHz. Tight temperature stability, from ±0.3ppm over -20° to +70°C . Output CMOS Squarewave. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

OCXO performance in a TCXO. A microprocessor-compensated crystal oscillator. Packaged in standard 14 pin DIL leaded package. Also available in SMD form. Ability to operate in extreme environments. Stability from 0.07ppm over -40 to +85°C.

Circular can crystal. Offers close tolerances for exacting applications.

An industry-standard crystal package, fully customizable to customer requirements. Wide frequency range. Choice of package styles

With the same footprint as HC49 the low-profile HC49-4H, low-profile crystal is an effective, industry- standard and low-cost crystal for a wide variety of system clock oscillator applications.

T1215 TCXOs are highly ruggedized, miniature SMD components. Close tolerance stability from ±0.5ppm is available over a wide frequency range. The TCXO will operate over the temperature range of  -55 to +105°C, and the part is able to withstand <100,000g. This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

Rugged TCXO for severe environments. Stability, from ±0.5ppm over -40° to +85°C. Operation from -55 to +95°C. Output Sine Wave, 3dBm ±2dBm into 50? load.

A low noise, tight stability SMD TCXO. Stability, from ±5x10-7 over -40° to +85°C. Output Sine Wave, 3dBm ±2dBm into 50 Ohm load or CMOS This is a Greenray product manufactured by Greenray, America. Contact Euroquartz Sales or Technical for details.

Suitable for close-tolerance, low frequency applications.

Dual frequency selectable oscillator. Stability from ±15ppm, operating temperature range from -10° ~ +70°C to -40°~+85°C and supply voltage from 1.8 to 3.3 Volts.

Differential HCSL oscillator with low integrated phase jitter, 200fs. Supply voltage 2.5 or 3.3Volts. Excellent phase noise performance with no PLL circuitry in the design

Crystals produced with swept quartz, able to withstand radiation levels of 100kRad (1kGy) and greater. Designed for space and military applications.

Differential HCSL oscillator with low integrated phase jitter, 200fs. Supply voltage 2.5 or 3.3Volts. Excellent phase noise performance. with no PLL circuitry in the design.

Micro-miniature differential LVDS oscillator with low integrated phase jitter, 200fs. Supply voltage 1.8, 2.5 or 3.3Volts. Excellent phase noise performance. A high performance LVDS oscillator with a surprisingly low price.

Differential LVDS oscillator with low integrated phase jitter, 200fs. Supply voltage 2.5 or 3.3Volts. Excellent phase noise performance. A high performance LVDS oscillator with a surprisingly low price.

Differential LVDS oscillator with low integrated phase jitter, 200fs. Supply voltage 2.5 or 3.3Volts. Excellent phase noise performance. A high performance LVDS oscillator with a surprisingly low price.

Solder temperature specification for RoHS-compliant SMD oscillators and crystals

A 'Q' Series oscillator, HDQF are precision LVDS output clock oscillators offering low integrated phase jitter and low current consumption. Available on quick delivery. Supply Voltage is 3.3V or 2.5V. Available in 7 x 5mm or 5 x 3.2mm SMD packages.

A 'Q' Series oscillator, HDQN are precision LVDS output clock oscillators offering low integrated phase jitter and low current consumption. Supply Voltage is 3.3V or 2.5V. Available in 7 x 5mm or 5 x 3.2mm SMD packages.

Helical filters are offered with customer specified centre frequency, any Fo between 55MHz to 1600MHz, customer specified bandwidth. There is no NRE design charge. The filters have low Insertion Loss,, low Impedance and small Group/Phase Delay. Small batch size orders are acceptable which are competitively priced.

High shock oscillator HGXO are designed to survive shock levels up to 100,000g. Packaged in standard 7 x 5mm ceramic SMD format. Operating temperature ranges from commercial to full MIL are available. This is a Statek product manufactured by Statek Inc, America. Contact Euroquartz Sales or Technical for details.

MTTF & FIT Statement for SMD crystals.

Differential LVPECL oscillator in 5 x 3.2 package with very low, femto second integrated phase jitter (200fs typical, 12kHz to 20MHz) Supply either 2.5 or 3.3 Volts. A high performance LVPECL oscillator with a low price.

High-performance HCMOS OCXO with SC-Cut crystal. Stability from ±0.01ppm. EFC (voltage control) as standard. Supply +5.0 Volts.

Differential LVPECL oscillator in 7 x 5mm package with very low, femto second integrated phase jitter (200fs typical, 12kHz to 20MHz) Supply either 2.5 or 3.3 Volts. A high performance LVPECL oscillator with a low price.

High-performance HCMOS OCXO with AT-Cut crystal. Stability from ±0.03ppm. EFC (voltage control) as standard. Supply +5.0 Volts.

A 'Q' Series oscillator, HPQF are precision LVPECL output clock oscillators offering low integrated phase jitter and low current consumption. Available on very short delivery timescales, Supply Voltage is 3.3V or 2.5V. Available in 7 x 5mm or 5 x 3.2mm SMD packages.

High-performance HCMOS OCXO with SC-Cut crystal. Stability from ±0.01ppm. EFC (voltage control) as standard. Supply +12.0 Volts.

High-performance HCMOS OCXO with AT-Cut crystal. Stability from ±0.03ppm. EFC (voltage control) as standard. Supply +12.0 Volts.

High performance, Sine Wave output OCXO with SC-Cut crystal. Stability from ±0.01ppm. EFC (voltage control) as standard. Output +3dBm into 50?. Supply +5.0 Volts.

A true sine wave output oscillator in 14 pin DIL package. Output <+7dBm into 50 Ohms

A true sine wave oscillator in 14 pin DIL package. Output 10kOhms //10pF, 1.0V p-p

High performance Sine Wave OCXO. Stability from ±0.01ppm with SC-Cut crystal, ±0.03 with AT-Cut. EFC (voltage control) as standard. Output +3dBm into 50 Ohms.

A sine wave oscillator in a miniature 5 x 3.2mm SMD package. Output 10k Ohms //10pF, 1.0V p-p

High performance, Sine Wave output OCXO with SC-Cut crystal. Stability from ±0.03ppm. EFC (voltage control) as standard. Output +3dBm into 50 Ohms. Supply +12.0 Volts.

A sine wave oscillator in 7x5mm SMD package. Output 10k Ohms //10pF, 1.0V p-p

High performance, Sine Wave output OCXO with AT-Cut crystal. Stability from ±0.03ppm. EFC (voltage control) as standard. Output +3dBm into 50 Ohms. Supply +12.0 Volts.

A true sine wave oscillator in 8 pin DIL package. Output 10kOhms //10pF, 1.0V p-p

A 'Q' Series oscillator, HTQF are precision HCMOS output clock oscillators offering low integrated phase jitter and low current consumption. Available on very short delivery time. Supply Voltage is 3.3V or 2.5V. Available in 7 x 5mm or 5 x 3.2mm SMD package

High-performance CMOS OCXO with SC-Cut crystal. Stability from ±0.01ppm. EFC (voltage control) as standard. Supply +5.0 Volts.

High-performance HCMOS OCXO with AT-Cut crystal. Stability from ±0.03ppm with AT-Cut. EFC (voltage control) as standard. Supply +5.0 Volts.
